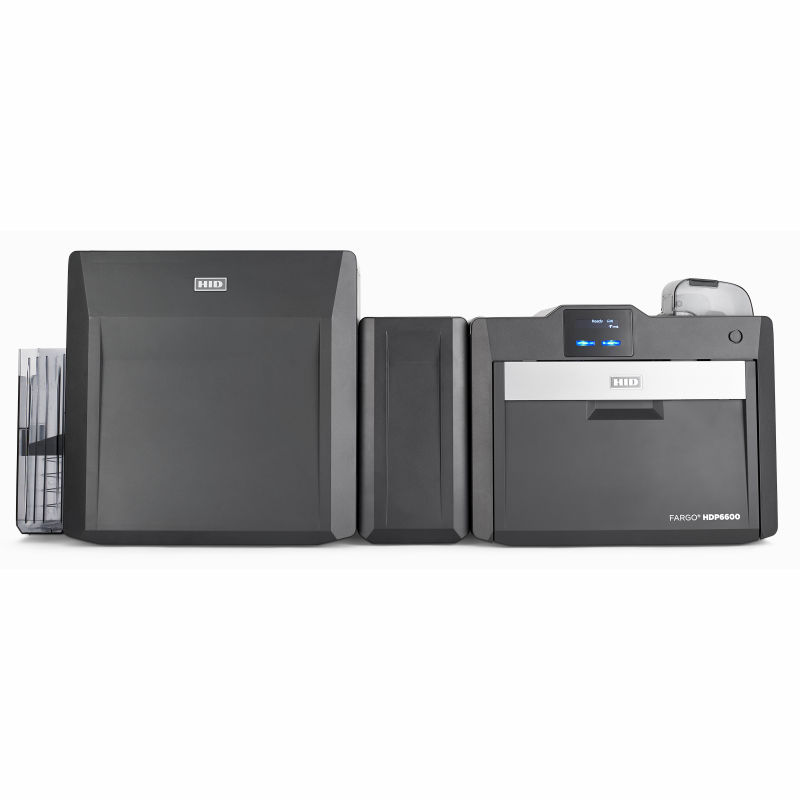

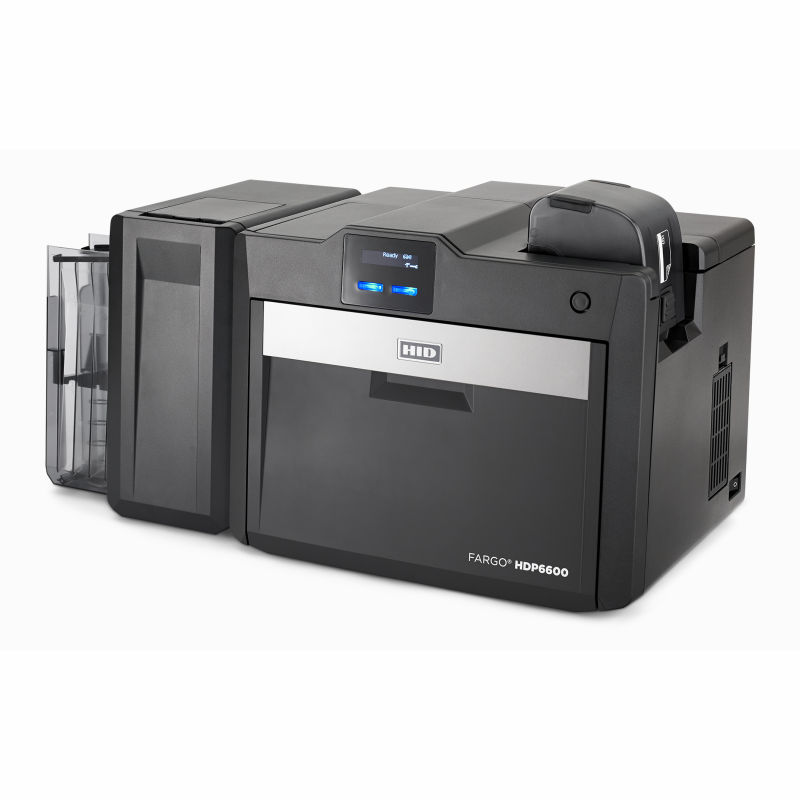

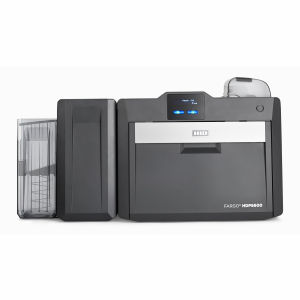

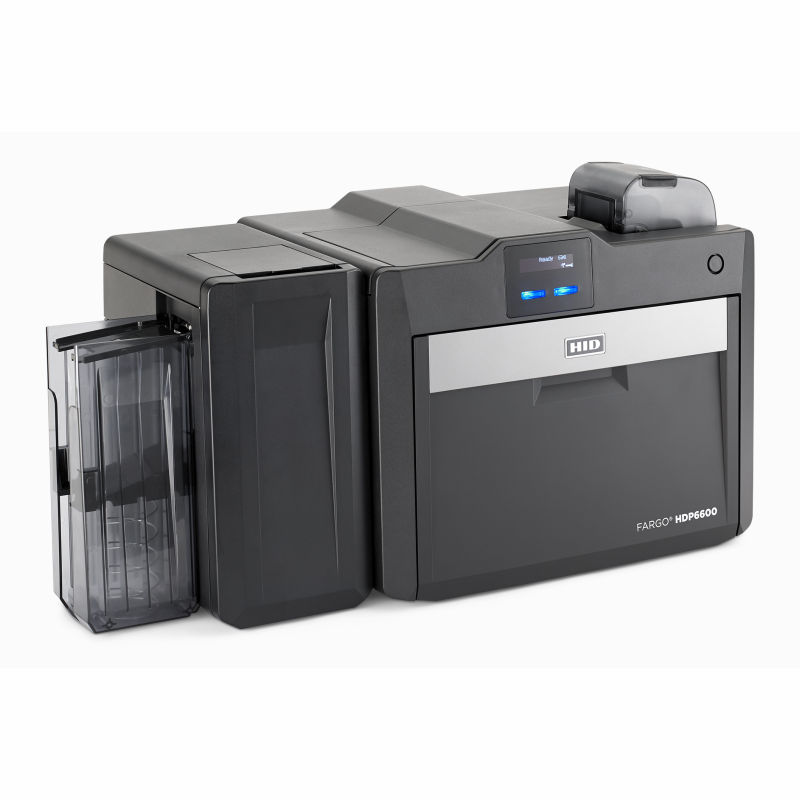

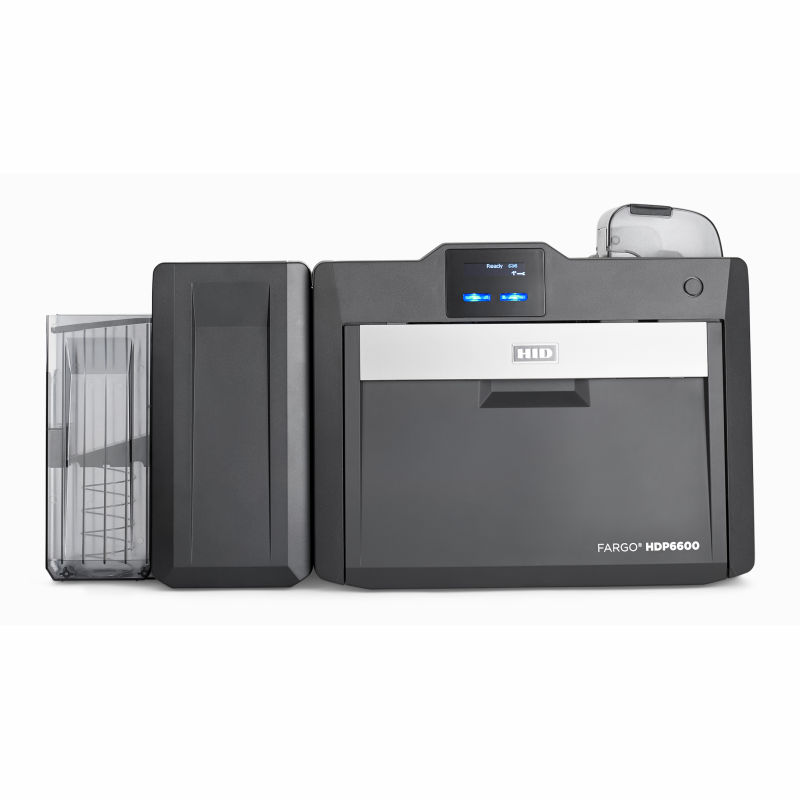

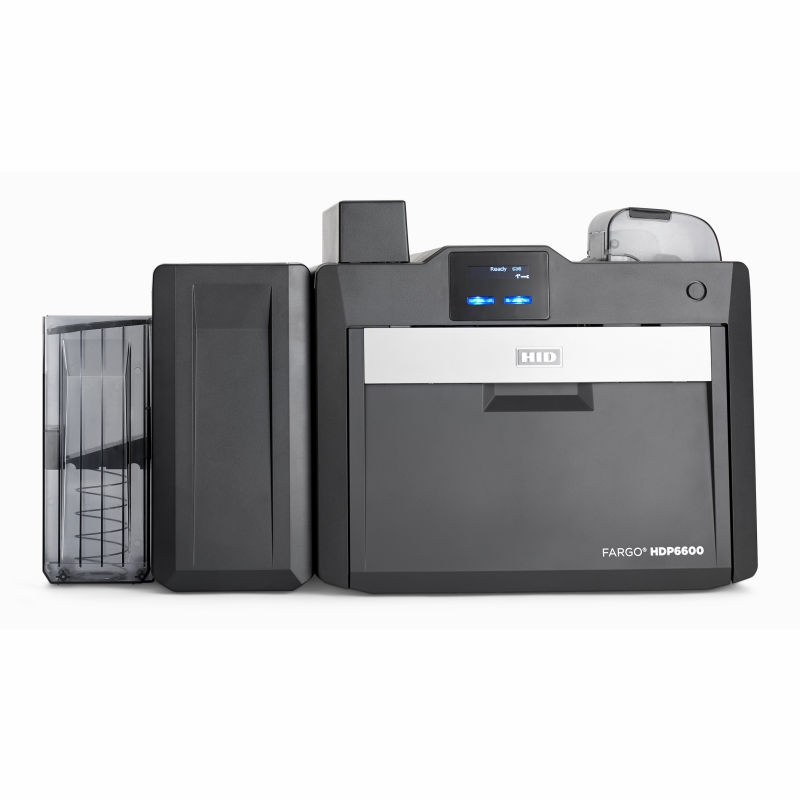

Fargo HDP6600 Color ID Card Printer, Dual-Sided Printing, 600 dpi, USB and Ethernet Interface, and ISO Magnetic Stripe Encoder Option. Three Year Printer Warranty. (M260704).
Tech Specs For P/N 094643 Print Method HDP Dye-Sublimation / Resin Thermal Transfer Resolution 600 dpi (23.6 dots/mm) Colors Up to 16.7 million / 256 shades per pixel Print Ribbon Options - Full-color with resin black, YMCK, 750 prints
- Full-color with two resin black panels, YMCKK, 600 prints HDP Film Options Clear, 1500 prints Print Speed** Batch Mode:
- Up to 230 cards per hour / 16 seconds per card (YMCK with transfer)
- Up to 126 cards per hour / 29 seconds per card (YMCKK with transfer) Accepted Standard Card Sizes CR-80 (3.375 L x 2.125 W / 85.6 mm L x 54 mm W) Print Area Over-the-edge on CR-80 cards Accepted Card Thickness .030 (30 mil) to .040 (40 mil) / .762mm to 1.01mm Accepted Card Types ABS, PVC, PET, PETG, proximity, smart and mag stripe cards, optical memory cards, polycarbonate. Input Hopper Card Capacity 100 cards (30 mil/.762mm) Output Hopper Card Capacity 200 cards (30 mil/.762mm) Card Cleaning Replaceable cleaning roller (included with each print ribbon) Display User-friendly, SmartScreen™ Graphical OLED Control Pane Software Drivers Windows® 10 / 8.1 / 8 / 7 / Server 2016 / Server 2012 / Server 2012 R2 / Server 2008 / Server 2008 R2 Encoding Options Supported smart card and magnetic stripe technologies: 125kHz (HID Prox) reader; 13.56 MHz (iCLASS® Standard/SE/ SR/Seos, MIFARE Classic®, MIFARE Plus®, MIFARE DESFire® EV1, ISO 14443 A/B, ISO 15693) read/write encoder; contact smart card encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards; ISO magnetic stripe encoding, dual high- and low-coercivity, tracks 1, 2 and 3. Access Control Credential Programming iCLASS® Standard/SE/SR/Seos, MIFARE Classic®, MIFARE DESFire® EV1, HID Prox (Also see the FARGO HDP6600 Card Encoding Modules Datasheet for additional information) Interface USB 2.0 and Ethernet with internal print server Operating Temperature 65 to 90 F / 18 to 32 C Humidity 2080% non-condensing Dimensions - HDP6600: 13.0H x 14.5W x 12.0D / 330mmH x 368mmW x 305mmD
- HDP6600 + Dual-side Module: 13.0H x 19.75W x 12.0D / 330mmH x 502mmW x 305mmD Weight - HDP6600: 21.0 lbs. / 9.5 kg
- HDP6600 + Dual-side Module: 24.6 lbs. / 11.2 kg Certifications UL, CE, FCC, BSMI, MIC, EAC, RCM, CCC, KCC, S-Mark Supply Voltage 100-240 VAC, 2.5A max Supply Frequency 50 Hz / 60 Hz Environmental Features GreenCircle® Certified card printer (base models only without encoders) Warranty Printer Three years including one year of free printer loaner support (U.S. only); optional Extended Warranty Program (U.S. only); Printhead Lifetime; unlimited pass Options Dual-sided printing, Card flattener, Magnetic stripe encoder, Contact Smart Card encoder, Contactless Smart Card encoding modules, 200-card input hopper, Printer cleaning kit. Coming Soon: LMX card lamination module (One Material and Two Material configurations available), Dual input card hopper module, Physical locks for card hoppers and consumables access, Secure proprietary consumables system, Custom secure holographic overlaminate. Software FARGO diagnostic utility with Color Assist spot-color matching included with printer driver Comments ** Print speed indicates an approximate print speed and is measured from the time a card drops into the output hopper to the time the next card drops into the output hopper. Print speeds do not include encoding time or the time needed for the PC to process the image. Process time is dependent on the size of the file, the printhead resolution, the CPU, amount of RAM and the amount of available resources at the time of the print. Info for SKU 094643 last updated on 5/4/2026 8:58:27 AM
Supplies For P/N 094643 HID Fargo HDP6600 Color Ribbons Fargo HDP6600 4-Panel Full-Color (YMCK) Ribbon
Fargo 4-Panel YMCK Full-Color Ribbon with Resin Black (750 Images/Roll). For use with Fargo HDP6600 ID Card Printers. Fargo HDP6600 5-Panel Full-Color (YMCKK) Ribbon
Fargo 5-Panel YMCKK Full-Color with Two Resin Black Panels (600 Images/Roll). For use with Fargo HDP6600 ID Card Printers. Fargo HDP6600 5-Panel Full-Color (YMCFK) Ribbon
Fargo 5-Panel YMCFK Full-Color Ribbon with Resin Black and Dye-based Fluorescing Panels (600 Images/Roll). For use with Fargo HDP6600 ID Card Printers. Fargo HDP6600 4-Panel Full-Color (YMCK) Ribbon
Fargo 4-Panel YMCK Full-Color Ribbon with Resin Black Panel (750 Images/Roll). For use with Fargo HDP6600 ID Card Printers. Fargo HDP6600 5-Panel Full-Color (YMCKK) Ribbon with Two Resin Black Panels
Fargo 5-Panel YMCKK Full-Color Ribbon with 2 Black Resin-Panel (600 Images/Roll). Compatible with: HDP6600. For use with Fargo HDP6600 ID Card Printers. HID Fargo HDP6600 Retransfer Film Fargo HDP6600 HDP6600 Re-Transfer Film
Fargo HDP6600 Re-Transfer Film, Clear (1500 Images/Roll). For use with Fargo HDP6600 ID Card Printers. HID Fargo HDP6600 Printer Upgrades Fargo HDP6600 HDP6600 Contactless Encoder Module
Fargo HDP6600 Contactless Encoder Module. For use with Fargo HDP6600 Card Printers. Fargo HDP6600 HDP6600 Programmer Module
Fargo HDP6600 Programmer Module. For use with Fargo HDP6600 Card Printers. Fargo HDP6600 HDP6600 Magnetic Encoder Module
Fargo HDP6600 Magnetic Encoder Module. For use with Fargo HDP6600 Card Printers. Fargo HDP6600 HDP6600 Contact Chip Encoder Module
Fargo HDP6600 Contact Chip Encoder Module. For use with Fargo HDP6600 Card Printers. Fargo HDP6600 HDP6600 Dual Side Printing Module
Fargo HDP6600 Dual Side Printing Module. For use with Fargo HDP6600 Card Printers. Fargo HDP6600 HDP6600 Card Flattener Module
Fargo HDP6600 Card Flattener Module. For use with Fargo HDP6600 Card Printers. Fargo HDP6600 HDP6600 L1M Lamination Upgrade Module
Fargo HDP6600 L1M Lamination Upgrade Module. For use with Fargo HDP6600 Card Printers. Fargo HDP6600 HDP6600 Locking Printer Output
Fargo HDP6600 Locking Printer Output Upgrade. For use with Fargo HDP6600 Card Printers. Fargo HDP6600 HDP6600 L2M Lamination Upgrade Module
Fargo HDP6600 L2M Lamination Upgrade Module. For use with Fargo HDP6600 Card Printers. Fargo HDP6600 HDP6600 Lamination Module Upgrade Tag
Fargo HDP6600 Lamination Module Upgrade Tag: Turns a One Material Laminator into a Two Material Laminator. For use with Fargo HDP6600 Card Printers. HID Fargo HDP6600 Card Stock Fargo Certified UltraCard Blank PVC Cards with Lo-Co Magnetic Stripe
Fargo Certified UltraCard PVC Cards with Low-Coercivity Magnetic Stripe, White, CR-80, 30 mil, 500 Cards/Box. Fargo Certified UltraCard Blank PVC Cards with Hi-Co Magnetic Stripe
Fargo Certified UltraCard PVC Cards with High-Coercivity Magnetic Stripe, White, CR-80, 30 mil, 500 Cards/Box. Fargo Certified UltraCard Blank PVC Cards - CR-80
Fargo Certified UltraCard PVC Cards, White, CR-80, 30 mil, 500 Cards/Box. Fargo UltraCard Premium Blank Composite PVC Cards
Fargo Certified UltraCard Premium Composite PVC Cards (60% PVC/40% Poly), White, CR-80, 30 mil, 500 Cards/Box. Fargo UltraCard Premium Blank Composite PVC Cards with Hi-Co Magnetic Stripe
Fargo Certified UltraCard Premium Composite PVC Cards (60% PVC/40% Poly) with High-Coercivity Magnetic Stripe, White, CR-80, 30 mil, 500 Cards/Box. Fargo UltraCard PC Blank PVC Cards - CR-80
Fargo Certified UltraCard PC Cards (Compatible with Laser Engraving), White, CR-80, 30 mil, 500 Cards/Box. HID Fargo HDP6600 Cleaning Supplies Fargo HDP5000/HDP5600/DTC550/HDP6600/HDP8500/HDP5000e Cleaning Rollers
Fargo Cleaning Rollers, 10 Pack. For use with Fargo HDP5000, HDP5600, DTC550, HDP6600, HDP8500 and HDP5000e ID Card Printers. Fargo Extra Cleaning Cards Double-Sided
Fargo Extra Cleaning Cards Double-Sided, 50 Count. For use with Fargo Persona M30, Persona M30e, Persona C30, Persona C30e, C50, DTC400, DTC400e, DTC1000, DTC1000M, DTC1250e, DTC1500, DTC4000, DTC4250e and DTC4500 ID Card Printers. Fargo HDP8500/HDP6600 HDP8500 Cleaning Kit
Fargo Cleaning Kit; Kit includes 4 Printhead Cleaning Swabs, 10 Cleaning Cards, 10 Cleaning Pads and 3 Alcohol Cleaning Cards. For use with Fargo HDP8500 and HDP6600 ID Card Printers. Fargo Isopropyl Alcohol Cleaning Cards
Fargo Isopropyl Alcohol Cleaning Cards, 10 Pack. For use with Fargo Persona M30, Persona M30e, Persona C30, Persona C30e, C50, DTC400, DTC400e, DTC1000, DTC1000M, DTC1250e, DTC1500, DTC4000, DTC4250e and DTC4500 ID Card Printers. Supplies info generated on 5/4/2026 8:58:27 AM.
|
|
|
 |
|
 |
|
